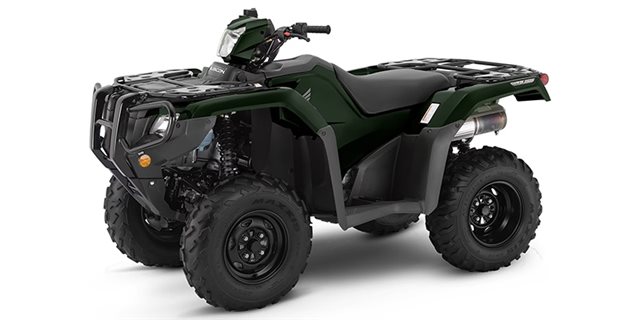

2024 Honda FourTrax Foreman Rubicon 4x4 EPS

Stock #900183
MSRP: $9,899 USD

575 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 Honda FourTrax Foreman Rubicon 4x4 EPS . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2024 Honda FourTrax Foreman Rubicon 4x4 EPS
  • VIN:
    1HFTE45EXR4900183
  • Model Number:
    TRX520FM6R
  • Color:
    CAMO
  • Stock Number:
    900183
  • Title:
    Clear
  • Location:
    Stahlman Powersports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.7
  • Rear Brake Diameter (mm):
    170
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    3

ENGINE

  • Bore (in):
    3.78
  • Bore (mm):
    96
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    518
  • Displacement (ci):
    31.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.81
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    36.3
  • Seat Height (mm):
    922
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    44.9
  • Capacity (kgs):
    84.8
  • Capacity (lbs):
    187
  • Capacity (lbs):
    99
  • Fender Storage Location:
    Front

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.3
  • Front Travel (mm):
    185.4
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    8.5
  • Rear Travel (mm):
    215.9

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3.9
  • Fuel Capacity (l):
    14.8
  • Fuel Capacity Reserve (gal):
    1.3
  • Fuel Capacity Reserve (l):
    4.9
  • Ground Clearance (in):
    9.8
  • Ground Clearance (mm):
    249
  • Height (in):
    48.7
  • Height (mm):
    1237
  • Length (ft):
    7.17
  • Length (ft/ft):
    7
  • Length (ft/in):
    2
  • Length (in):
    86
  • Length (mm):
    2184.4
  • Towing Capacity (kgs):
    599.7
  • Towing Capacity (lbs):
    1322
  • Turning Radius (ft):
    11.5
  • Wet Weight (kg):
    316.2
  • Wet Weight (lbs):
    697
  • Wheelbase (in):
    50.9
  • Wheelbase (mm):
    1293
  • Width (in):
    47.4
  • Width (mm):
    1204

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Automatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 25 x 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 25 x 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
